20 Ltr. Semi Automatic
PET Stretch Blow Moulding

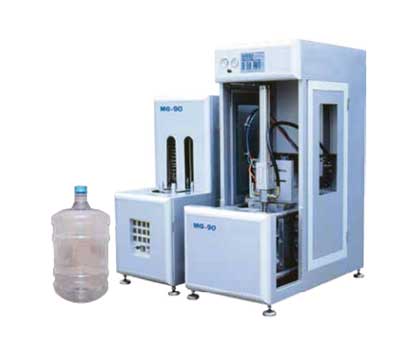

MG-90 Blow Moulding Machine has received wide acclaim in 20 Ltr. PET Jar Blowing in India. It is popular for the low connected load and high production speed.
The designing and engineering of the machine and the Rotary oven have given the machine ease of operation and maintenance.
General Information
| Machine Description | MG-90 Blow Molding Machine | ||
|---|---|---|---|
| Item | Unit | Technical Data | |
| Container | |||
| Item | Unit | Technical Data | |
| Product Material | PET | ||
| Container Volume | L | 5–6 (2 Cavity) / 10–25 (1 Cavity) | |
| Theoretical Output | Pcs./hr. | 5 gallon: 90 / 5 L: 400 | |
| Max. Bottle Height | mm | 450 | |
| Max. Bottle Diameter | mm | Ø 330 | |
| Moulding | |||
| Item | Unit | Technical Data | |
| Max. Mould Plate (L×W) | mm | 480 × 550 | |
| Max. Thickness of Mould | mm | 380 | |
| Clamping Force | KN | 30 | |
| Mould Opening Stroke | mm | 300 | |
| Air Compressor | |||
| Item | Unit | Technical Data | |
| High Pressure Compressor | M³ / MPa / kW | > 0.6 / 3.0 / 15 | |
| Air Pressure for Blowing | MPa | 2.0–3.0 | |
| Main Machine Electricity | |||
| Item | Unit | Technical Data | |
| Power | kW | 40 | |
| Voltage / Frequency | V / Hz | 380/50 (3 Phase) | |
| 220/50 (1 Phase) | |||
| Machine Size | |||
| Item | Unit | Technical Data | |
| Main Machine (L×W×H) | M | 1.55 × 0.82 × 2.00 | |
| Main Machine Weight | T | 1.2 | |
| Preform Oven (L×W×H) | M | 2.52 × 0.86 × 1.56 | |
| Preform Oven Weight | T | 0.34 | |
| Safety | |||
| Unit | Technical Data | ||
| Auto-emergency Alarm | Safety Inter-Locking Device | ||
