Semi-Automatic
PET Stretch Blow Moulding Machine
Container blowing range up to 5 Ltrs.
Semi-Automatic Blowing Machine is suitable to produce different shape of the PET Bottles. The USP of this machine is, it could blow containers from 100 ml to 6000 ml and thus gives the user the flexibility to blow such a wide range on the same machine.
Features
- Fast Machines with optimized productivity and production cost
- Precise heat control due to layered heating system
- Reduced Electrical Consumption: reflectors are close to the preform in the oven
- Parts changed less frequently: parts are more robust with optimised service life

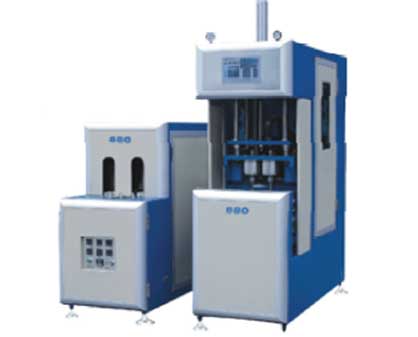

MG-880
| MG-880 Blow Molding Machine | |||
|---|---|---|---|
| Container | |||
| Item | Unit | Technical Data | |
| Product Material | PET | ||
| Container Volume | L | 0.1–2.5 (2 Cavity) / 3–6 L (1 Cavity) | |
| Theoretical Output | Pcs./hr. | 0.1–2.5 L: 850 / 3–6 L: 400 | |
| Max. Bottle Height | mm | 450 | |
| Max. Bottle Diameter | mm | 220 | |
| Moulding | |||
| Item | Unit | Technical Data | |
| Max. Mould Plate (L×W) | mm | 380 × 500 | |
| Max. Thickness of Mould | mm | 380 | |
| Clamping Force | KN | 20 | |
| Mould Opening Stroke | mm | 200 | |
| Air Compressor | |||
| Item | Unit | Technical Data | |
| Air Compressor | M³ / MPa / kW | > 0.63 / 3.0 / 11 kW | |
| Air Pressure for Blowing | MPa | 2.0–3.0 | |
| Main Machine Electricity | |||
| Item | Unit | Technical Data | |
| Power | kW | 52 | |
| Voltage / Frequency | V / Hz | 380/50 (3 Phase) 220/50 (1 Phase) | |
| Machine Size & Weight | |||
| Item | Unit | Technical Data | |
| Main Machine (L×W×H) | M | 1.48 × 0.60 × 2.13 | |
| Main Machine Weight | T | 0.8 | |
| Preform Oven (L×W×H) | M | 1.37 × 0.61 × 1.34 | |
| Preform Oven Weight | T | 0.22 | |
Container blowing range up to 20 Ltrs.
MG-90 Blow Moulding Machine has received wide acclaim in 20 Ltr. PET Jar Blowing in India. It is popular for the low connected load and high production speed.
The designing and engineering of the machine and the Rotary oven have given the machine ease of operation and maintenance.
General Information
| Machine Description | MG-90 Blow Molding Machine | ||
|---|---|---|---|
| Item | Unit | Technical Data | |
| Container | |||
| Item | Unit | Technical Data | |
| Product Material | PET | ||
| Container Volume | L | 5–6 (2 Cavity) / 10–25 (1 Cavity) | |
| Theoretical Output | Pcs./hr. | 5 gallon: 90 / 5 L: 400 | |
| Max. Bottle Height | mm | 450 | |
| Max. Bottle Diameter | mm | Ø 330 | |
| Moulding | |||
| Item | Unit | Technical Data | |
| Max. Mould Plate (L×W) | mm | 480 × 550 | |
| Max. Thickness of Mould | mm | 380 | |
| Clamping Force | KN | 30 | |
| Mould Opening Stroke | mm | 300 | |
| Air Compressor | |||
| Item | Unit | Technical Data | |
| High Pressure Compressor | M³ / MPa / kW | > 0.6 / 3.0 / 15 | |
| Air Pressure for Blowing | MPa | 2.0–3.0 | |
| Main Machine Electricity | |||
| Item | Unit | Technical Data | |
| Power | kW | 40 | |
| Voltage / Frequency | V / Hz | 380/50 (3 Phase) | |
| 220/50 (1 Phase) | |||
| Machine Size | |||
| Item | Unit | Technical Data | |
| Main Machine (L×W×H) | M | 1.55 × 0.82 × 2.00 | |
| Main Machine Weight | T | 1.2 | |
| Preform Oven (L×W×H) | M | 2.52 × 0.86 × 1.56 | |
| Preform Oven Weight | T | 0.34 | |
| Safety | |||
| Unit | Technical Data | ||
| Auto-emergency Alarm | Safety Inter-Locking Device | ||
